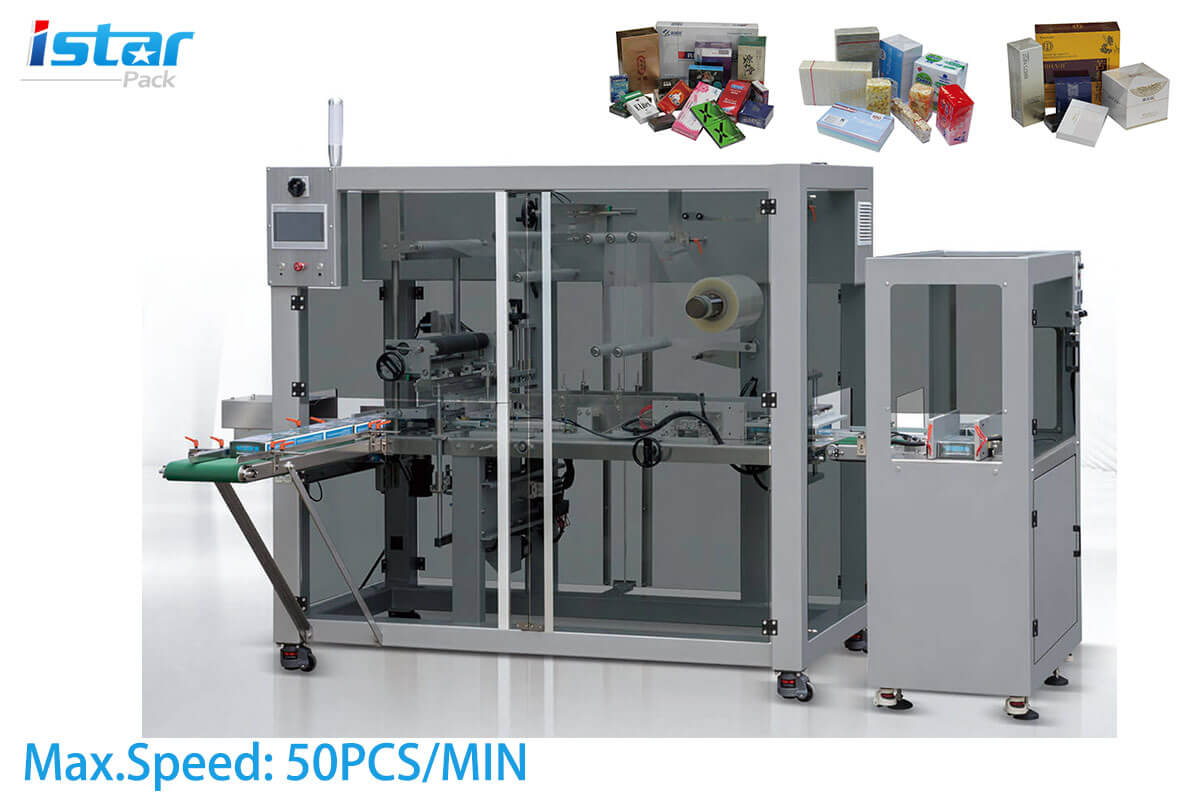

Automatic Overwrapping Machine BTB-450

The BTB-450 model is a fully automatic trailing edge seal overwrapping machine capable of wrapping speeds of up to 60 packs per minute. With PLC, HMI and multi axis servo system, suitable for overwrapping big size cartons.

It is suitable for packaging in a single large carton or collective packaging in multiple small cartons.

12-Month Warranty

Installation Support

Custom Package Solution

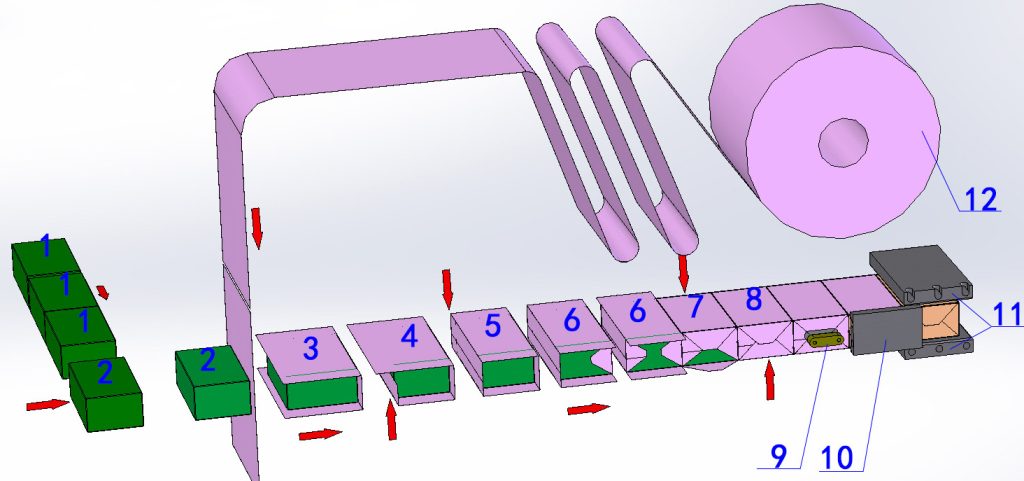

Wrapping Process

Features

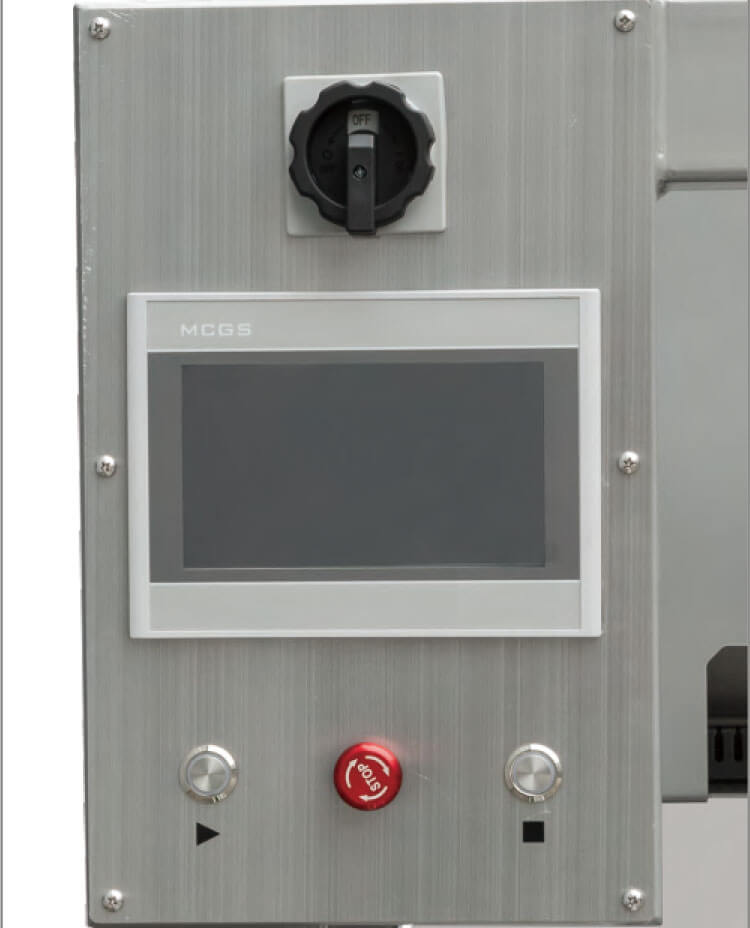

Operator HMI Control Panel

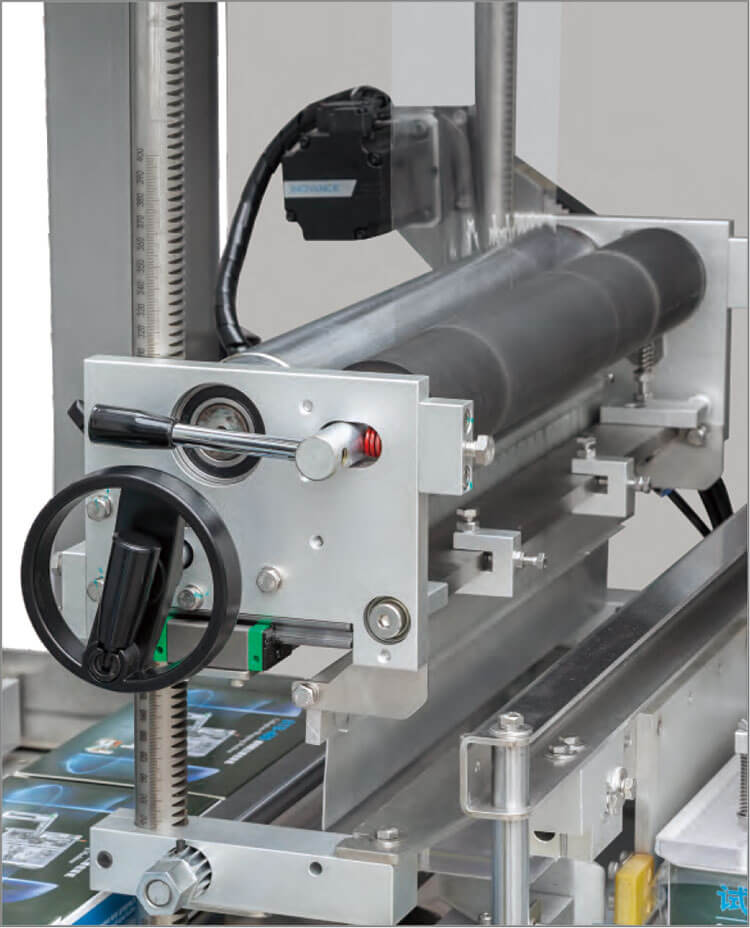

Servo Film Feed

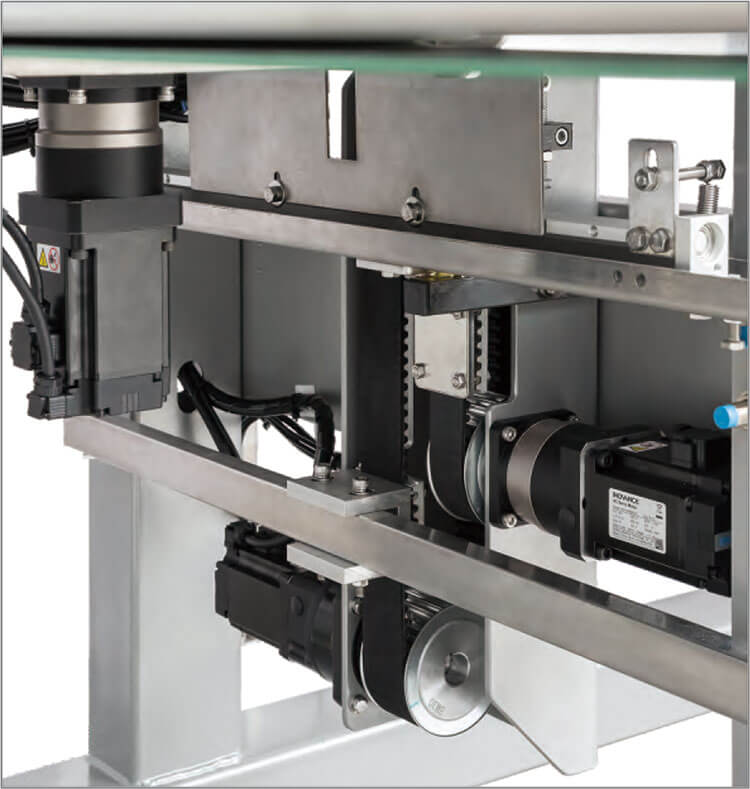

Servo motor drive trailing edge seal

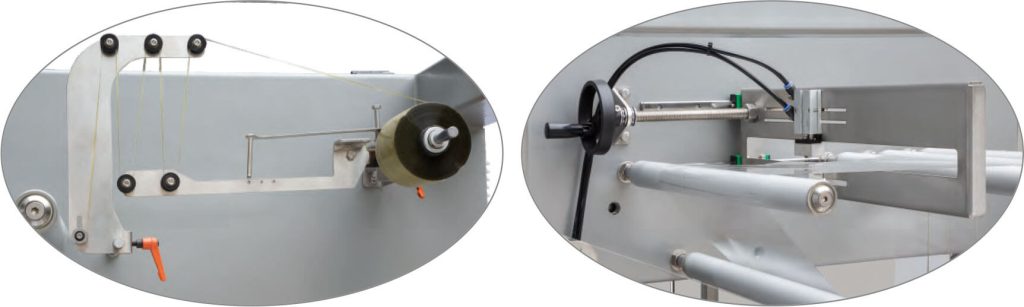

Tear tape system

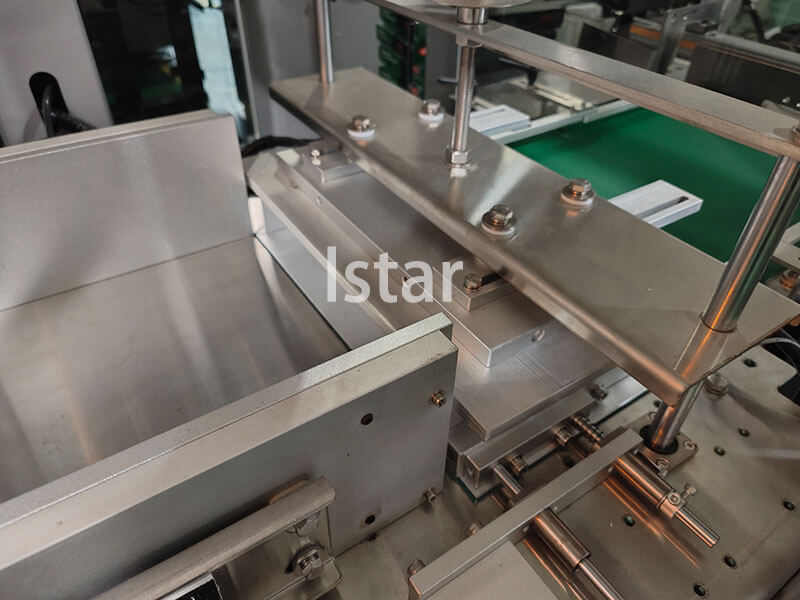

Folding

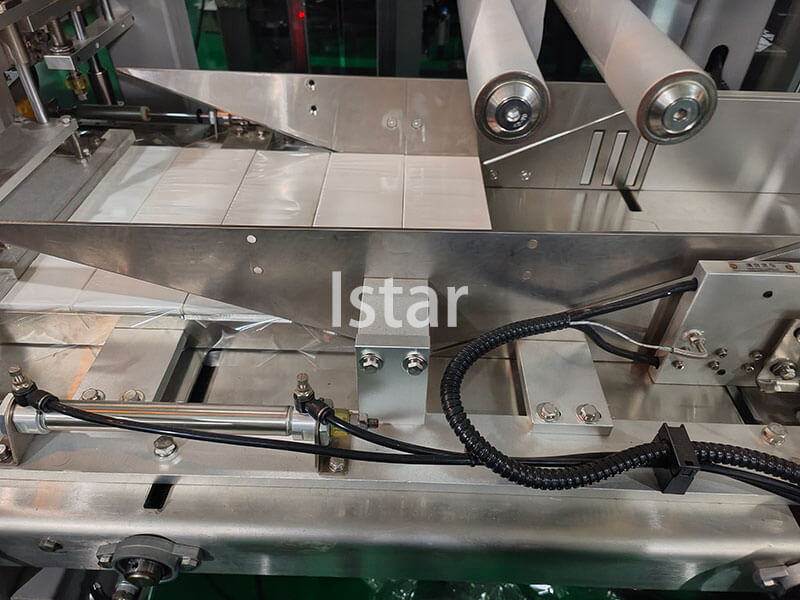

Top and Bottom Sealing

Machine Specification

Model	BTB-450
Packing Speed	30-60 PCS/MIN
Packing Size	L: 60-360mm; W: 30-240mm; H: 16-120mm
Packing Material	BOPP Film, PVC
Voltage Supply	220V 50/60HZ
Total Power supply	8.0KW
Working Pressure	≥0.6mpa 20m3/h
Overall Dimension	(L)2960×(W)1870×(H)1700mm
Machine Weight	600KG
