We provide Overwrapping Machine and customize packaging lines for your products.

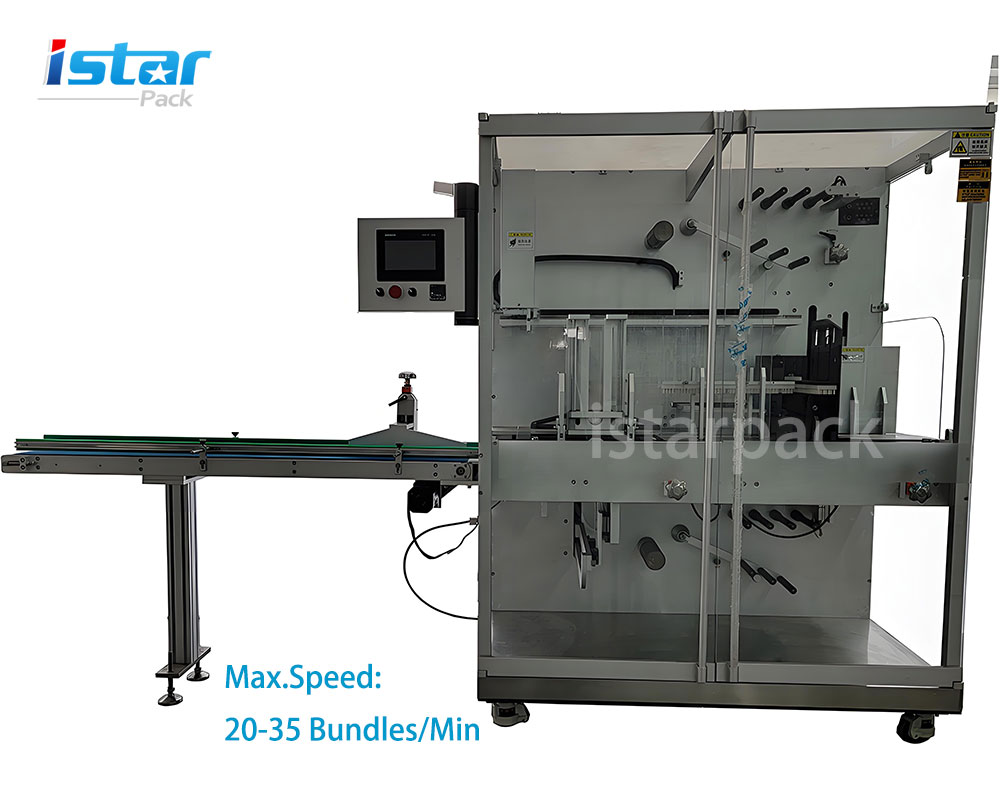

The High Speed Cartons Bundling Machine 500 adopts a balcony style design equipped with a multi - column box pre - stacking system. It is controlled by PLC and Touch Screen and driven by multi - axis servo motor system. This machine offers high speed performance, stable operation, and easy adjustment of box size, with speed ranging from 20 to 35 bundles per minute.
12-Month Warranty
Installation Support
Custom Package Solution
Touch Screen
Feed Conveyor
Stacking System
Box Pushing System
Sealing System
| Model | 500 |
| Speed | 20-35 Bundles/Min |
| Max. bundle size [L x W x H] | 190×150×300mm |
| Min. bundle size [L x W x H] | 50×60×90mm |
| Packaging Material | LDPE Film |
| Film Width | 30-80mm |
| Film Thickness | 50micron, 60micron |
| Working Pressure | ≥0.6mpa 20m3/h |
| Motor power | 220V 50Hz 2.0kw |
| Overall Dimension | L3131XW1060XH1949mm |
| Machine Weight | 980KG |
